Portable Deployment¶

This guide provides instructions for deploying the Intrudex Client using the portable deployment method, which offers maximum flexibility for custom installation paths, advanced configuration management, and specialized enterprise requirements.

Portable Deployment Overview¶

Portable Deployment Features

The portable deployment method provides complete control over installation paths, configuration management, and service integration, making it ideal for organizations with specific security policies or custom directory structures.

Portable Deployment Benefits¶

Custom Installation Paths: Deploy to any directory structure
Manual Configuration Control: Full control over all configuration parameters
No Registry Dependencies: Minimal system footprint
Portable Execution: Run from removable media or network shares
Service Integration Options: Choose how to integrate with Windows services
Advanced Security Configuration: Custom security policies and permissions

graph TB
    subgraph "Portable Deployment Process"
        A[Download Portable Package]
        B[Extract to Target Directory]
        C[Custom Configuration]
        D[Service Registration]
        E[Validation Testing]
    end

    A --> B
    B --> C
    C --> D
    D --> E

    style A fill:#3498db
    style B fill:#f39c12
    style C fill:#e74c3c
    style D fill:#27ae60
    style E fill:#9b59b6

System Requirements¶

Minimum Specifications¶

Operating System: Windows 10 (Build 1809+) / Windows Server 2016+
Memory: 100 MB RAM available
Storage: 100 MB free disk space (including logs and configuration)
Network: HTTPS connectivity to Intrudex Server
Permissions: Administrative privileges for service registration

Advanced Requirements¶

PowerShell: Version 5.1 or later (for advanced scripting)
Windows Management Framework: 5.1 or later
Microsoft Visual C++ Redistributable: 2019 or later

Download and Extraction¶

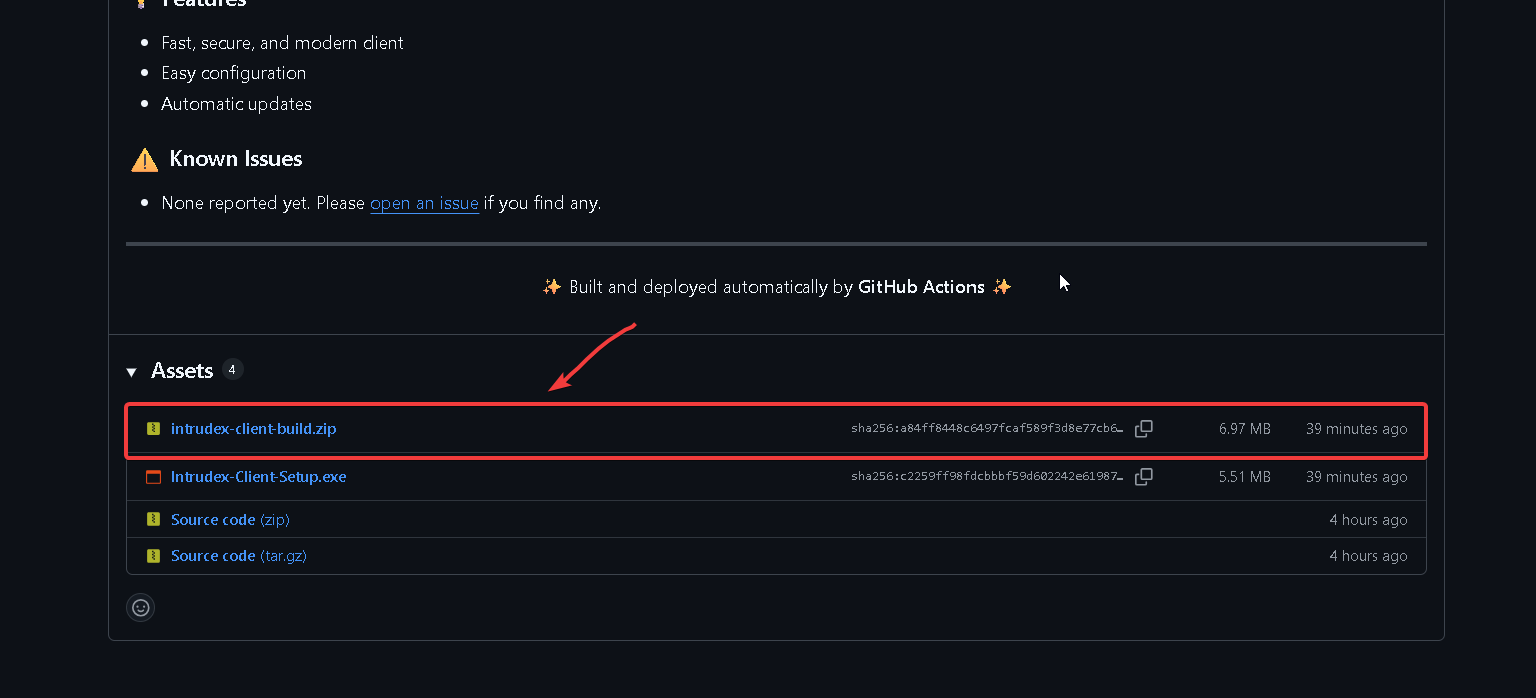

Step 1: Download Portable Package¶

Download the latest portable package from the official repository:

Client Enterprise Configuration Preview

Step 2: Extract to Target Directory¶

Extract the portable package to your desired location:

Extract the Portable Package¶

Windows (PowerShell)Linux (Shell)macOS (Terminal)

# Define target directory
$TargetDirectory = "C:\Intrudex/Intrudex-Client"
$ZipPath = "Downloads\Intrudex\Intrudex-Client.zip"

# Create target directory if it doesn't exist
if (-not (Test-Path $TargetDirectory)) {
    New-Item -ItemType Directory -Path $TargetDirectory -Force
}

# Extract portable package
Expand-Archive -Path $ZipPath -DestinationPath $TargetDirectory -Force

# Verify extraction
Get-ChildItem -Path $TargetDirectory

# Define target directory
TARGET_DIR="$HOME/intrudex-client"
ZIP_PATH="$HOME/Downloads/Intrudex-Client.zip"

# Create target directory if it doesn't exist
mkdir -p "$TARGET_DIR"

# Extract portable package
unzip "$ZIP_PATH" -d "$TARGET_DIR"

# Verify extraction
ls -l "$TARGET_DIR"

# Define target directory
TARGET_DIR="$HOME/intrudex-client"
ZIP_PATH="$HOME/Downloads/Intrudex-Client.zip"

# Create target directory if it doesn't exist
mkdir -p "$TARGET_DIR"

# Extract portable package
unzip "$ZIP_PATH" -d "$TARGET_DIR"

# Verify extraction
ls -l "$TARGET_DIR"

Configuration Management¶

Step 1: Primary Configuration¶

Configure the main client settings config/client_config.json and config/sigma_config.json:

client_config.jsonsigma_config.json

    {
         "sysmon_exe_path": "assets/Sysmon64.exe",
         "sysmon_config_path": "config/sysmonconfig-export.xml",
         "sysmon_url": "http://your-server.domain.com/api/logs/sysmon/",
         "application_url": "https://your-server.domain.com/api/logs/application",
         "security_url": "http://your-server.domain.com/api/logs/security",
         "system_url": "http://your-server.domain.com/api/logs/system",
         "system_event_log_source": "System",
         "application_log_source": "Application",
         "security_event_log_source": "Security",
         "event_log_source": "Microsoft-Windows-Sysmon/Operational",
         "event_filter": "*[System[(Level=4 or Level=0)]]",
         "sleep_interval_ms": 1000,
         "log_level": "debug",
         "send_events": true,

         "http_config": {
           "user_agent": "Intrudex Client/1.0",
           "content_type": "application/xml",
           "use_https": false
         },
         "default_flag": "background",
         "sigma_url": "http://your-server.domain.com/api/logs/sigma",
         "sigma_event_log_source": "Security",
         "sigma_event_filter": "*[System[(Level=4 or Level=0)]]",
         "sigma_sleep_interval_ms": 1000,
         "sigma_log_level": "info",
         "sigma_rules_dir": "rules/sigma/",
         "sigma_config_path": "config/sigma_config.json"
     }

    {
       "api_base_url": "http://localhost/sigma/api",
       "headers": {
         "X-API-Key": "<Your-API-KEY>",
         "Authorization": "<Your-API-KEY>",
         "Accept": "application/json"
       }
     }

Step 3: Sysmon Configuration¶

Configure Sysmon integration:

# Copy and customize Sysmon configuration
$SysmonConfigPath = "config\sysmon_config.xml"

# Download latest Sysmon configuration (optional)
$SysmonConfigUrl = "https://raw.githubusercontent.com/SwiftOnSecurity/sysmon-config/master/sysmonconfig-export.xml"
Invoke-WebRequest -Uri $SysmonConfigUrl -OutFile $SysmonConfigPath -UseBasicParsing

# Verify Sysmon configuration
[xml]$SysmonConfig = Get-Content $SysmonConfigPath
Write-Host "Sysmon configuration loaded: $($SysmonConfig.Sysmon.schemaversion)" -ForegroundColor Green

Service Integration¶

Manual Service Registration¶

Register the Intrudex Client as a Windows service:

# Service registration script
$ServiceName = "IntrudexClient"
$ServiceDisplayName = "Intrudex Security Monitoring Client"
$ServiceDescription = "Intrudex enterprise security monitoring client agent"
$ExecutablePath = Join-Path $TargetDirectory "intrudex-client.exe"
$ServiceArguments = "--background --config `"$(Join-Path $TargetDirectory 'config\client_config.json')`""

# Create service
New-Service -Name $ServiceName `
            -DisplayName $ServiceDisplayName `
            -Description $ServiceDescription `
            -BinaryPathName "`"$ExecutablePath`" $ServiceArguments" `
            -StartupType Automatic `
            -Credential (Get-Credential -Message "Enter service account credentials (or use LocalSystem)")

# Configure service recovery options
sc.exe failure $ServiceName reset=86400 actions=restart/5000/restart/5000/restart/5000

# Set service to restart on failure
sc.exe config $ServiceName depend= "Winmgmt"

# Start the service
Start-Service -Name $ServiceName

# Verify service status
Get-Service -Name $ServiceName

Advanced Service Configuration¶

Configure advanced service parameters:

# Service security configuration
$ServiceSid = (Get-WmiObject -Class Win32_Service -Filter "Name='$ServiceName'").ProcessId
$ServiceAccount = "NT SERVICE\$ServiceName"

# Grant necessary permissions
$LogDirectory = Join-Path $TargetDirectory "logs"
$ConfigDirectory = Join-Path $TargetDirectory "config"

# Set directory permissions
icacls $LogDirectory /grant "${ServiceAccount}:(OI)(CI)F" /T
icacls $ConfigDirectory /grant "${ServiceAccount}:(OI)(CI)R" /T

# Configure Windows Event Log permissions
wevtutil sl Security /ca:O:BAG:SYD:(A;;0xf0007;;;SY)(A;;0x7;;;BA)(A;;0x1;;;BO)(A;;0x1;;;SO)(A;;0x1;;;S-1-5-32-573)

Write-Host "Service security configuration completed" -ForegroundColor Green

Validation and Testing¶

Step 1: Configuration Validation¶

Validate the client configuration:

# Test configuration file
& "$TargetDirectory\intrudex-client.exe" --config "$TargetDirectory\config\client_config.json" --validate-config

# Test server connectivity
& "$TargetDirectory\intrudex-client.exe" --config "$TargetDirectory\config\client_config.json" --test-connection

# Perform health check
& "$TargetDirectory\intrudex-client.exe" --config "$TargetDirectory\config\client_config.json" --check-health

Step 2: Service Operation Testing¶

Test service functionality:

# Check service status
Get-Service -Name $ServiceName | Format-Table -AutoSize

# Test service start/stop
Stop-Service -Name $ServiceName
Start-Service -Name $ServiceName

# Monitor service logs
Get-Content "$TargetDirectory\logs\intrudex-client.log" -Tail 20 -Wait

Step 3: Integration Testing¶

Test integration with Intrudex Server:

# Test API connectivity
$ApiEndpoint = "https://your-intrudex-server.domain.com/api/logs"
$Headers = @{
    "Authorization" = "Bearer your-api-key"
    "Content-Type" = "application/json"
}

try {
    $Response = Invoke-RestMethod -Uri $ApiEndpoint -Headers $Headers -Method GET
    Write-Host "✓ Server connectivity successful" -ForegroundColor Green
    Write-Host "Connected clients: $($Response.clients.Count)" -ForegroundColor Yellow
} catch {
    Write-Host "✗ Server connectivity failed: $($_.Exception.Message)" -ForegroundColor Red
}

Advanced Deployment Options¶

Batch Deployment Script¶

Create a batch deployment script for multiple machines:

# batch-deploy.ps1
param(
    [Parameter(Mandatory=$true)]
    [string[]]$ComputerNames,

    [Parameter(Mandatory=$true)]
    [string]$SourcePath,

    [Parameter(Mandatory=$false)]
    [string]$TargetPath = "C:\Program Files\Intrudex\Client",

    [Parameter(Mandatory=$false)]
    [PSCredential]$Credential
)

foreach ($Computer in $ComputerNames) {
    Write-Host "Deploying to $Computer..." -ForegroundColor Yellow

    try {
        # Create remote session
        $Session = New-PSSession -ComputerName $Computer -Credential $Credential

        # Copy files
        Copy-Item -Path $SourcePath -Destination $TargetPath -ToSession $Session -Recurse -Force

        # Execute remote installation
        Invoke-Command -Session $Session -ScriptBlock {
            param($Path)

            # Register service
            $ServiceName = "IntrudexClient"
            $ExecutablePath = Join-Path $Path "intrudex-client.exe"

            New-Service -Name $ServiceName `
                       -DisplayName "Intrudex Security Monitoring Client" `
                       -BinaryPathName "`"$ExecutablePath`" --background" `
                       -StartupType Automatic

            Start-Service -Name $ServiceName

        } -ArgumentList $TargetPath

        # Close session
        Remove-PSSession $Session

        Write-Host "✓ Successfully deployed to $Computer" -ForegroundColor Green

    } catch {
        Write-Host "✗ Failed to deploy to $Computer`: $($_.Exception.Message)" -ForegroundColor Red
    }
}

Group Policy Deployment¶

Create Group Policy deployment package:

# Create Group Policy deployment structure
$GPOPath = "C:\GPO-Intrudex-Client"
New-Item -ItemType Directory -Path $GPOPath -Force

# Create deployment script
$DeployScript = @"
@echo off
REM Intrudex Client Group Policy Deployment Script

set TARGET_DIR=%ProgramFiles%\Intrudex\Client
set SOURCE_DIR=%~dp0Files

REM Create target directory
if not exist "%TARGET_DIR%" mkdir "%TARGET_DIR%"

REM Copy files
xcopy "%SOURCE_DIR%\*" "%TARGET_DIR%\" /E /H /C /I /Y

REM Register service
sc create "IntrudexClient" binPath= "\"%TARGET_DIR%\intrudex-client.exe\" --background" start= auto
sc description "IntrudexClient" "Intrudex Enterprise Security Monitoring Client"
sc start "IntrudexClient"

REM Log deployment
echo %DATE% %TIME% - Intrudex Client deployed successfully >> "%WINDIR%\Temp\intrudex-deploy.log"
"@

$DeployScript | Out-File -FilePath "$GPOPath\deploy.bat" -Encoding ASCII

Write-Host "Group Policy deployment package created at: $GPOPath" -ForegroundColor Green

UNC Path Configuration¶

Configure for network share deployment:

# Network share deployment configuration
$NetworkPath = "\\file-server\intrudex-client"
$LocalPath = "C:\Program Files\Intrudex\Client"

# Create symbolic link for network deployment
New-Item -ItemType SymbolicLink -Path $LocalPath -Value $NetworkPath

# Configure service for network path
$ServiceConfig = @"
[Service]
Type=simple
ExecStart="$NetworkPath\intrudex-client.exe" --background --config "$NetworkPath\config\client_config.json"
WorkingDirectory=$NetworkPath
User=NetworkService
Restart=always
RestartSec=10

[Install]
WantedBy=multi-user.target
"@

# Alternative: Create batch script for network execution
$NetworkBatch = @"
@echo off
pushd "$NetworkPath"
intrudex-client.exe --background --config "config\client_config.json"
popd
"@

$NetworkBatch | Out-File -FilePath "$LocalPath\start-network.bat" -Encoding ASCII

Troubleshooting¶

Common Deployment Issues¶

Service Registration Failed

Symptom: Service fails to register or start

Resolution:

# Check service account permissions
whoami /priv

# Verify executable permissions
icacls "$TargetDirectory\intrudex-client.exe"

# Test executable directly
& "$TargetDirectory\intrudex-client.exe" --foreground --verbose

# Check Windows Event Logs
Get-WinEvent -LogName System | Where-Object {$_.Id -eq 7034 -or $_.Id -eq 7031}

Configuration File Not Found

Symptom: Client cannot locate configuration file

Resolution:

# Verify configuration file exists
Test-Path "$TargetDirectory\config\client_config.json"

# Check file permissions
icacls "$TargetDirectory\config\client_config.json"

# Validate JSON syntax
try {
    Get-Content "$TargetDirectory\config\client_config.json" | ConvertFrom-Json
    Write-Host "Configuration valid" -ForegroundColor Green
} catch {
    Write-Host "Configuration invalid: $($_.Exception.Message)" -ForegroundColor Red
}

Server Connection Issues

Symptom: Cannot connect to Intrudex Server

Resolution:

# Test network connectivity
Test-NetConnection -ComputerName "your-server.domain.com" -Port 80

# Test HTTPS connectivity
try {
    $Response = Invoke-WebRequest -Uri "https://your-server.domain.com/api/health" -UseBasicParsing
    Write-Host "Server reachable: $($Response.StatusCode)" -ForegroundColor Green
} catch {
    Write-Host "Server unreachable: $($_.Exception.Message)" -ForegroundColor Red
}

# Check DNS resolution
Resolve-DnsName "your-server.domain.com"

Uninstallation¶

# Complete uninstallation script
Stop-Service -Name "IntrudexClient" -Force
Remove-Service -Name "IntrudexClient"

# Remove files
Remove-Item $TargetDirectory -Recurse -Force

# Remove registry entries
Remove-Item "HKLM:\SOFTWARE\Intrudex" -Recurse -Force

# Remove Windows Event Log entries (optional)
wevtutil el | Where-Object {$_ -like "*Intrudex*"} | ForEach-Object {wevtutil cl $_}

Write-Host "Intrudex Client completely uninstalled" -ForegroundColor Green

¶

Portable Deployment¶

Portable Deployment Overview¶

Portable Deployment Benefits¶

System Requirements¶

Minimum Specifications¶

Advanced Requirements¶

Download and Extraction¶

Step 1: Download Portable Package¶

Step 2: Extract to Target Directory¶

Extract the Portable Package¶

Configuration Management¶

Step 1: Primary Configuration¶

Step 3: Sysmon Configuration¶

Service Integration¶

Manual Service Registration¶

Advanced Service Configuration¶

Validation and Testing¶

Step 1: Configuration Validation¶

Step 2: Service Operation Testing¶

Step 3: Integration Testing¶

Advanced Deployment Options¶

Batch Deployment Script¶

Group Policy Deployment¶

Network Share Deployment¶

UNC Path Configuration¶

Troubleshooting¶

Common Deployment Issues¶

Uninstallation¶
